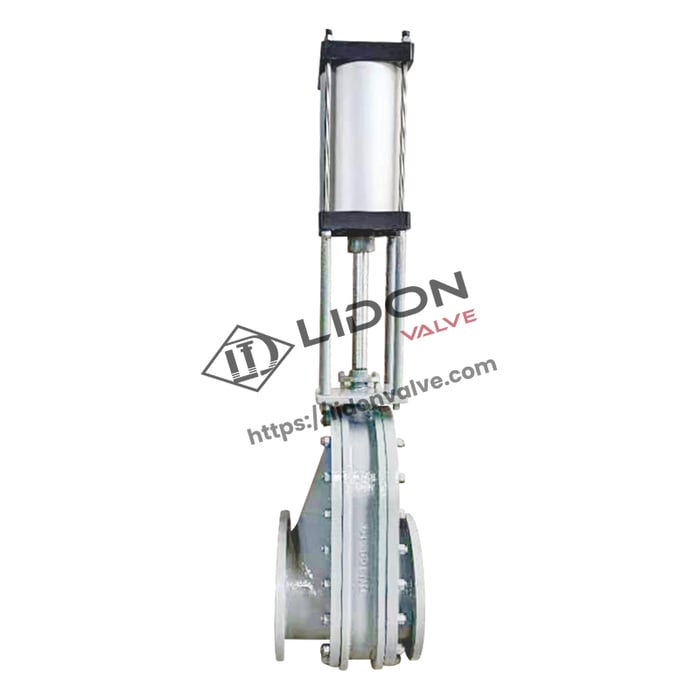

Pneumatic Parallel Sliding Ceramic Gate Valve
Product Features
Characteristics:
1. This valve is suitable for dry ash systems in power plants and warehouse pump discharging and transportation. It can also be used to open and close pipelines for various types of abrasive dry dust, water, and other media in mining, papermaking, chemical industries, etc. The monthly nominal pressure is 1.0MPa, the applicable temperature is ≤425°C, and the air source pressure is 0.6-0.8MPa.
2. This valve refers to Armstrong valve technology and is fully sealed in any direction after closing. The valve body and cover are welded with WCB steel castings and seamless steel pipes, and the fillers are made of hard seals.
3. This valve has good sealing performance, strong wear resistance, a small starting load, less dust sticking and ash formation, and a long service life.
| Nominal pressure CLASS | Nominal diameter IN(mm） | ≈L changeable | ≈ L1 Variable length | D2 | Z-M | Z-d | H | H1 | ||
150LB | 2 | ≈120 | ≈220 | 160 | 125 | 92 | 4-16 | 4-19 | 472 | 547 |
| 21/2 | ≈125 | ≈245 | 180 | 145 | 105 | 4-16 | 4-19 | 482 | 557 | |
| 3 | ≈130 | ≈250 | 195 | 160 | 127 | 8-16 | 4-19 | 545 | 641 | |
| 4 | ≈140 | ≈265 | 215 | 180 | 157 | 8-16 | 8-19 | 595 | 708 | |
| 5 | ≈140 | ≈265 | 245 | 210 | 186 | 8-16 | 8-22 | 712 | 848 | |
| 9 | ≈150 | ≈295 | 280 | 240 | 216 | 8-20 | 8-22 | 811 | 974 | |
| 8 | ≈165 | ≈340 | 335 | 295 | 270 | 8-20 | 8-22 | 954 | 1184 | |
| 10 | ≈165 | ≈365 | 390 | 350 | 324 | 12-20 | 12-25 | 1134 | ||
| 12 | ≈175 | ≈365 | 440 | 400 | 381 | 12-20 | 12-25 | 1260 | ||
| 14 | ≈185 | ≈365 | 500 | 460 | 413 | 16-20 | 12-29 | 1420 | ||
| 16 | ≈200 | ≈380 | 565 | 515 | 470 | 16-22 | 16-29 | 145 | ||
| 18 | ≈220 | ≈400 | 615 | 565 | 533 | 20-22 | 16-32 | 1665 | ||
| 20 | ≈240 | ≈450 | 670 | 620 | 584 | 20-22 | 20-32 | 1830 |
| Z644TC Ceramic discharge valve | Z644Y Tungsten carbide discharge valve | ||||||||||||||||
| NO. | Name | Material | NO. | Name | Material | NO. | Name | Material | NO. | Name | Material | ||||||
| 1 | Starting device | 6 | Valve stem | Chrome plating | 1 | Starting device | 1 | Valve stem | Chrome plating | ||||||||
| 2 | Bracket | WCB | 7 | Valve core | WCB | 2 | Bracket | WCB | 2 | Valve core | WCB | ||||||
| 3 | Packing gland | WCB | 8 | Valve clack | WCB+ Ceramics | 3 | Packing gland | WCB | 3 | Valve clack | WCB+ Tungsten Carbide | ||||||
| 4 | filling | EPDM | 9 | Valve seat | WCB+ Ceramics | 4 | filling | EPDM | 4 | Valve seat | WCB+ Tungsten Carbide | ||||||
| 5 | Valve body | WCB | 10 | channel | WCB | 5 | Valve body | WCB | 5 | channel | WCB | ||||||
| Design reference | GB | API | ASME | |||||||
| Design standard | GB/T12237 | API6D | ASME B16.34 | |||||||
| Structural length | GB/T12221 | API 6D | ASME B16.10 | |||||||
| Flanged ends | GB/T9113 JB/T79 | ASME B16.5、B16.47 | ||||||||
| Test & inspection | JB/T9092 | API 6D | AP1598 | |||||||
| Nominal pressure PN | Woking pressure under romal iemoeratue Max. | The shell testing | Ait seal test pressure | High-pressure seal test pressure | ||||||
| 1.6 | 1.6 | 2.4 | 0.6 | 1.76 | ||||||
| 2.5 | 2.5 | 3.8 | 0.6 | 2.75 | ||||||
| 4.0 | 4.0 | 6.0 | 0.6 | 4.4 | ||||||
| 6.4 | 6.4 | 9.6 | 0.6 | 7.1 | ||||||
| Class150 | 2.0 | 3.0 | 0.6 | 2.2 | ||||||
| Class300 | 5.0 | 7.5 | 0.6 | 5.5 | ||||||
The Ultimate Pneumatic Parallel Sliding Ceramic Gate Valve
When it comes to industrial valves, the Pneumatic Parallel Sliding Ceramic Gate Valve stands out as a superior choice. This high-performance valve combines the power of a pneumatic actuator with the durability and reliability of a ceramic gate. With its advanced design and cutting-edge features, this valve is the ideal solution for a wide range of applications.
Exceptional Durability
The Pneumatic Parallel Sliding Ceramic Gate Valve is built to last. It is constructed with high-quality materials that can withstand even the harshest operating conditions. The ceramic gate is highly resistant to corrosion, erosion, and wear, ensuring a longer service life and minimal maintenance requirements. Whether you're dealing with abrasive media or extreme temperatures, this valve can handle it all with ease.
Efficient Flow Control
With its parallel sliding gate design, this valve offers exceptional flow control capabilities. The gate moves in a parallel motion, providing a large flow area and a smooth passage for fluids. This allows for precise regulation of flow rates, minimizing pressure drops and ensuring optimal performance. Whether you need to adjust flow rates for process control or shut off the flow completely, this valve delivers reliable and accurate results.
Pneumatic Actuation
The Pneumatic Parallel Sliding Ceramic Gate Valve is equipped with a pneumatic actuator, which offers several advantages over other types of actuators. The pneumatic actuator provides fast and precise control, allowing for quick response times and accurate positioning. It also eliminates the need for manual operation, reducing the risk of human error and improving overall efficiency. With its pneumatic actuation, this valve is easy to integrate into automated systems.
Corrosion Resistance
Corrosion can be a major concern in many industries, but not with this valve. The ceramic gate is highly resistant to corrosion, making it ideal for corrosive media and harsh environments. Whether you're working with acids, alkalis, or other corrosive substances, this valve will maintain its integrity and ensure long-term performance.
Versatile Applications
Thanks to its exceptional features and capabilities, the Pneumatic Parallel Sliding Ceramic Gate Valve can be used in a wide range of applications. Whether you're in the chemical, petrochemical, oil and gas, or power generation industry, this valve is the perfect choice. Its versatility, durability, and reliable performance make it a valuable asset in any industrial setting.
