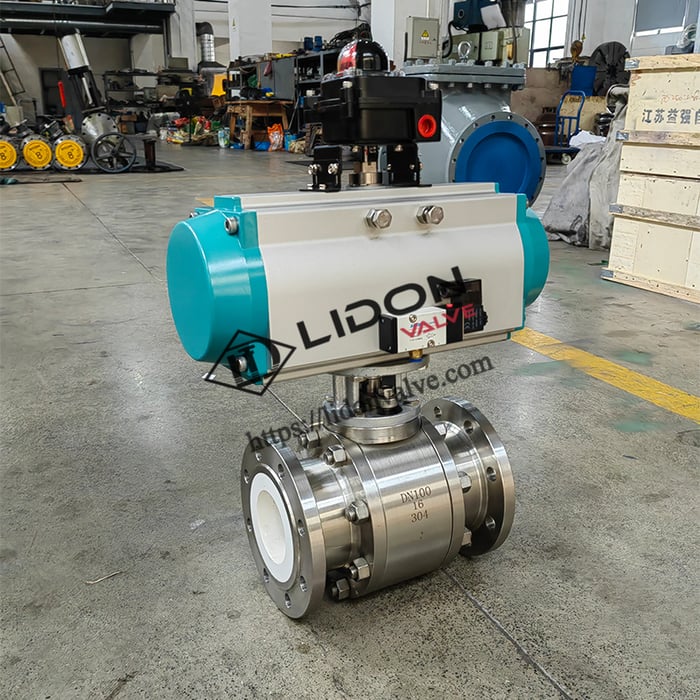

Pneumatic Ceramic Lined Ball Valve
Product Features
Characteristics:
1. All parts in contact with the medium are structural ceramic materials with extremely high chemical stability and hardness (Rockwell hardness HRC90), second only to diamond. Therefore, this valve has extremely high wear resistance, corrosion resistance, and erosion resistance, as well as good heat insulation and small thermal expansion.
2. The ball is manufactured using advanced grinding equipment and processes, with high roundness accuracy and good surface quality. After grinding with the valve seat, the self-lubricating property of Zr02 ceramic can be used to achieve good sealing performance.
3. The good wear resistance of ceramic makes this valve durable, extremely reliable, and has a long service life, which is 2-4 times that of titanium alloy valves and Monel valves.
4. When used in granular media with high hardness, or media with soft particles but corrosiveness, this valve has unparalleled absolute advantages and is currently the only valve suitable for such media.
| Nominal pressure CLASS | Nominal diameter IN(mm） | Dimension(mm) | Weight (kg) | |||||||||
| L | L1 | D | D1 | D2 | b | f | Z-d | W | H | |||

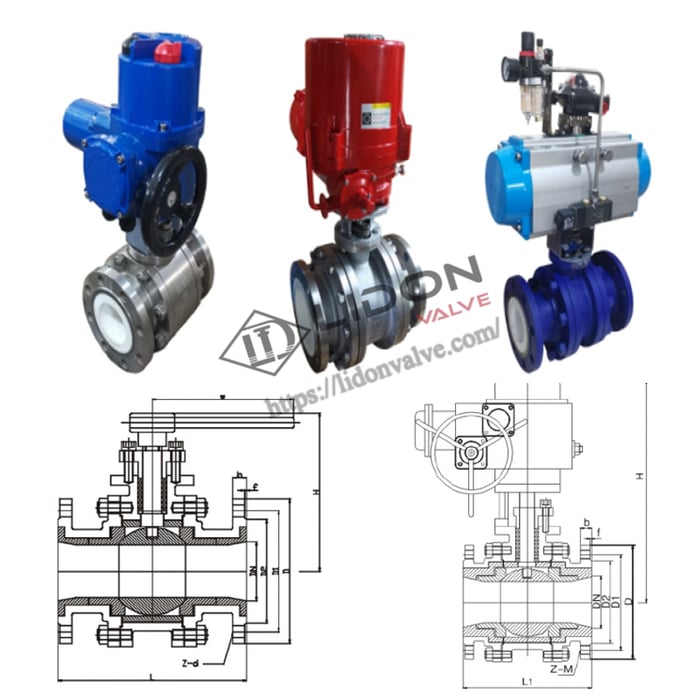

| 150LB | 2 | 200 | 175 | 152 | 120.5 | 92 | 19 | 2 | 4-19 | 250 | 160 | 18 |
| 21/2 | 220 | 190 | 178 | 139.5 | 105 | 22.5 | 2 | 4-19 | 300 | 172 | 23 | |
| 3 | 250 | 203 | 190 | 152.5 | 127 | 23.9 | 2 | 4-19 | 350 | 189 | 31 | |
| 4 | 280 | 229 | 229 | 190.5 | 157 | 23.9 | 2 | 8-19 | 500 | 200 | 38 | |
| 5 | 320 | 254 | 254 | 216 | 186 | 23.9 | 2 | 8-22 | 500 | 228 | 65 | |
| 9 | 360 | 267 | 279 | 241.5 | 216 | 25.4 | 2 | 8-22 | 800 | 270 | 95 | |
| 8 | 400 | 292 | 343 | 298.5 | 270 | 28.5 | 2 | 8-22 | 800 | 295 | 125 | |
| 10 | 533 | 330 | 406 | 362 | 324 | 31 | 2 | 12-25 | 1000 | 395 | 215 | |
| 12 | 610 | 356 | 483 | 432 | 381 | 32 | 2 | 12-25 | 1100 | 445 | 300 | |
| valve body | Stem | sphere | valve seat | filler | Applicable media | Suitable Temperature | ||||||
| WCB | 2Cr13 | Complex Ceramics | Complex Ceramics | PTFE | Coal powder, cinder, powdery particles, etc. corrosive media | ≤200℃ | ||||||
| CF8 304 | 0Cr18Ni9 (304) | Complex Ceramics | Complex Ceramics | PTFE | Coal powder, cinder, powdery particles, Corrosive media such as urea | ≤200℃ | ||||||
| CF8M 316 | 0Cr17Ni12M02 (316) | Complex Ceramics | Complex Ceramics | PTFE | Coal powder, cinder, powdery particles, Corrosive media such as nitric acid | ≤200℃ | ||||||
| CF3M 316L | 00Cr17Ni14Mo2 (316L) | Complex Ceramics | Complex Ceramics | PTFE | Coal powder, cinder, powdery particles, Corrosive media such as acetic acid | ≤200℃ | ||||||
| Design reference | GB | API | ASME | |||||
| Design standard | GB/T12237 | API 6D | ASME B16.34 | |||||
| Structural length | GB/T12221 | API 6D | ASME B16.10 | |||||
| Flanged ends | GB/T9113 JB/T79 | ASME B16.5、B16.47 | ||||||
| Test & inspection | JB/T9092 | API 6D | API 598 | |||||
| Nominal pressure PN | Working pressure under normal temperature Max. | The shell testing | Air seal test pressure | High-pressure seal test pressure | ||||
| 1.6 | 1.6 | 2.4 | 0.6 | 1.76 | ||||
| 2.5 | 2.5 | 3.8 | 0.6 | 2.75 | ||||
| 4.0 | 4.0 | 6.0 | 0.6 | 4.4 | ||||
| 6.4 | 6.4 | 9.6 | 0.6 | 7.1 | ||||
| Class150 | 2.0 | 3.0 | 0.6 | 2.2 | ||||
| Class300 | 5.0 | 7.5 | 0.6 | 5.5 | ||||
Pneumatic Ceramic Lined Ball Valve: The Ultimate Solution for Reliable and Durable Flow Control
Introduction:
Experience unparalleled performance and longevity with our top-of-the-line Pneumatic Ceramic Lined Ball Valves. This meticulously crafted valve is designed to provide exceptional flow control in a wide range of applications. Whether you need to regulate the flow of water, chemicals, or gases, our Pneumatic Ceramic Lined Ball Valve is the perfect choice. With its advanced features and superior construction, you can trust this valve to deliver reliable and leak-free operation for years to come.
1. Smooth and Precise Flow Control:
The Pneumatic Ceramic Lined Ball Valve features a precision-engineered ball that offers smooth and precise flow control. The ball is designed to rotate freely within the valve body, allowing for effortless and accurate regulation of the flow. This ensures that you can achieve the desired flow rate with ease, making it ideal for applications where precise control is crucial.
2. Zero Leakage:
One of the key advantages of our Pneumatic Ceramic Lined Ball Valve is its exceptional sealing capabilities. The valve is equipped with high-quality sealing elements that prevent any leakage, even under high pressure and temperature conditions. This ensures that your system remains leak-free, preventing costly downtime and minimizing the risk of environmental contamination.
3. Versatile Applications:
Our Pneumatic Ceramic Lined Ball Valve is suitable for a wide range of applications, including but not limited to water treatment, chemical processing, oil and gas, power generation, and pharmaceuticals. Its versatility makes it an excellent choice for various industries, providing reliable and efficient flow control in diverse operating conditions.
4. Longevity and Reliability:
Investing in our Pneumatic Ceramic Lined Ball Valve means investing in a long-lasting and reliable flow control solution. The combination of high-quality materials, precision engineering, and advanced design features ensures that this valve will continue to perform flawlessly, even in the most challenging environments. Say goodbye to frequent valve replacements and enjoy uninterrupted and efficient flow control.
Experience unparalleled performance and longevity with our Pneumatic Ceramic Lined Ball Valve. Made from high-quality ceramic materials, this valve offers superior flow control, zero leakage, and corrosion resistance. Suitable for a wide range of applications, it is easy to install and maintain. With high temperature and pressure resistance, low friction and wear characteristics, and exceptional longevity, our Pneumatic Ceramic Lined Ball Valve is the ultimate choice for reliable and durable flow control.
